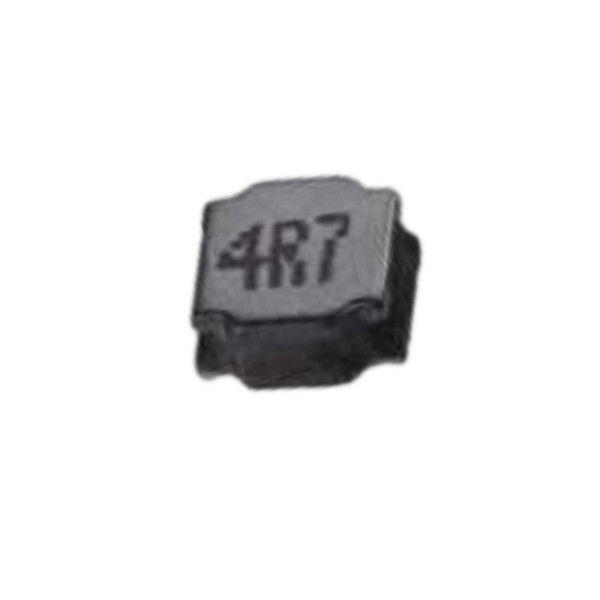

22uH 0.7A SMD Power Inductor , Magnetic Ferrite Coil Inductor With Low Dcr

SMD SMT Ferrite Iron Coil Inductor Magnetic Wire Wound Choke Coil Inductor 220 With Low Dcr

125R Ferrite Iron Coil Inductor Magnetic 22uh 15uh 10uh Wire Wound Choke Coil Inductor Smd 220 With Low Dcr

Features:

• Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
• The use of magnetic iron powder ensure capability for large current.
• Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
• Ultra low buzz noise, due to composite construction.
• Available on tape and reel for automatic insertion
• Low DC resistance and large permissible DC current
• This can be surface mount assembly and reflow soldering is also possible
• Reliable quality
• Frequency range up to 5.0MHz

Applications:

• Telecomm base stations.
• Notebooks, desktop computers, servers, graphic cards；
• Mobile devices with multifunction such as adding color TV and camera
• Molding Power Inductor Integrated Inductors SMD For Notebooks Desktop Computers Servers
• MFlat-screen TVs, blue-ray disc recorders, set top boxes

Specification:

Material:

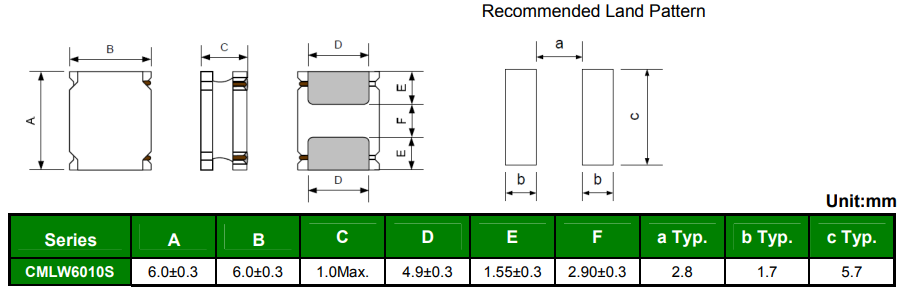

Dimensions:

Specification:

Packaging Quantity(pcs)

Standard Packing Quantity:2000 pcs/reel

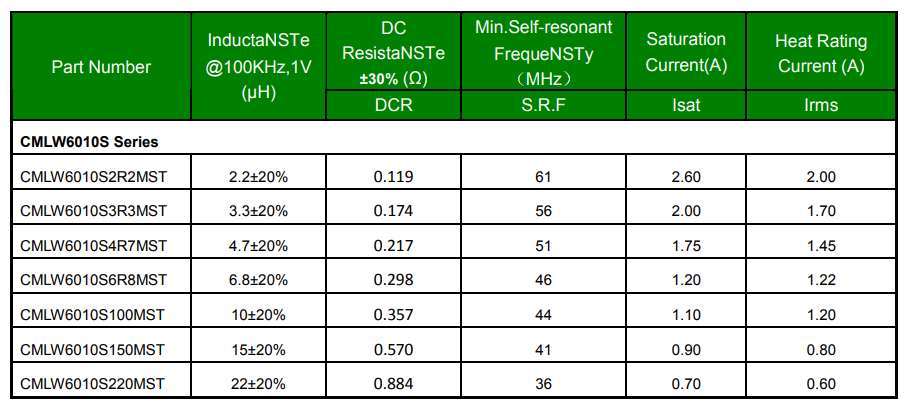

Electrical Characteristics

• All test data is referenced to 20°C ambient;
• Rated current: Isat or Irms, whichever is smaller;
• Isat: DC current at which the inductance drops approximate 30% from its value without current;
• Irms: DC current that causes the temperature rise (△T =40°C) from 20°C ambient.

RFQ:

• What are your main products?

Our main products are: Power inductor,SMD inductor coil,NR inductor etc..

• How long will the delivery time take?

Usually takes 14-21 days.

• What shipping method will you use?

We can go by ship and UPS, DHL, etc., according to customer requirements

22uH SMD Power Inductor

0.7A SMD Power Inductor

Magnetic Ferrite Coil Inductor

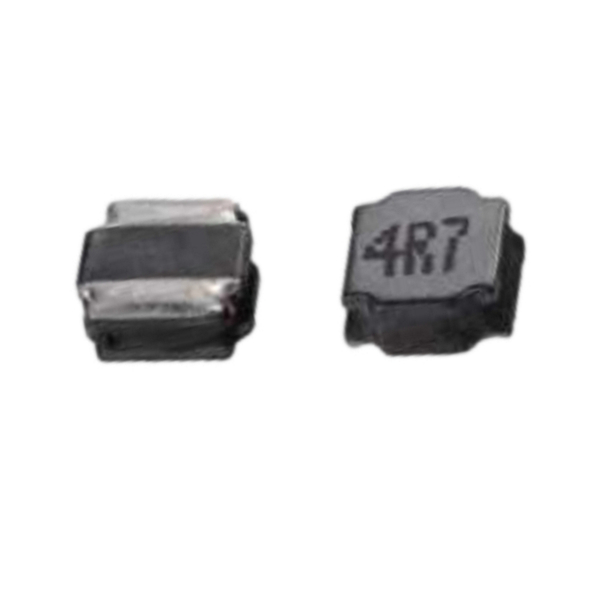

22uH 0.7A SMD Power Inductor , Magnetic Ferrite Coil Inductor With Low Dcr Images
